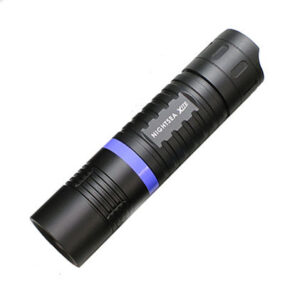

Xite-RB flashlight

Xite-RB Inspection Light

May 2021

The original FL5000 flashlight is no longer available.  We do offer a flashlight with equivalent performance (even brighter blue light!) and less expensive – the model Xite-RB of our Xite Flashlight System.

The Xite-RB is not an ultraviolet light – it is a blue light for fluorescent NDT inspection that works with existing fluorescent particles and penetrants. The blue light excites the fluorescence of the materials and the matching filter glasses completely block the reflected blue so that you see your fluorescent indications with maximum contrast. The Xite incorporates a unique flashing mode that makes it much easier to see indications when there is ambient light present.

Included with each system



Xite system case

  • Fluorescence excitation LED flashlight (your choice of one wavelength) with lanyard
    • Three operating modes – low intensity, high intensity, flashing
  • Matching barrier filter glasses with microfiber case for storage and cleaning
  • Diffuser cap
  • High capacity lithium ion battery
  • Battery charger and USB charging cord
  • Instruction sheet
  • Padded foam shipping/carry/storage case



Diffuser

Add-on 15° diffuser cap provides a wider, softer beam

Flashing mode for enhanced detection in ambient light

As bright as fluorescence may appear when you use an intense light source to view it in conditions of darkness, in most cases it actually tends to be a relatively weak effect that is easily masked by other light. If you try to find fluorescence when there is moderate ambient light (room light, sunlight, …), any fluorescing subject will respond to the excitation, but the response may be too weak to notice easily.

But there’s a trick – by making the excitation light source blink repetitively (a strobe effect), any fluorescence will blink at the same rate, while the illuminated background will not. This flickering increases the apparent contrast and thus increases detectability.

Read more here …



More information and ordering

BlueLine NDT became a part of NIGHTSEA, which is now a part of Electron Microscopy Sciences (EMS). For more information about the Xite-RB beyond what you can read below or to place an order please contact EMS directly – email and telephone in the footer at the bottom of this page.

  • Application examples
    • The FL5000 has been used in a variety of ways in inspection environments, including reducing rework bounces, workflow management, pre-screening, and more. The Xite-RB will provide the same functions.
  • NDT code considerations
    • Authorization to use blue light in final inspection is approved by some but not all approval agencies. This article discusses the use of the FL5000 in relation to code considerations.

Order the Xite-RB flashlight packages on the Electron Microscopy Sciences (EMS) web site.



Specifications

    • Intensity: >20,000 μW/cm2 at 15″
    • Lamp life: >10,000 hours
    • Batteries: Li-ion
    • Weight: 9 oz. (255g), including battery
    • Size: 5-1/4″ L x 1-1/4″ D (13.5 cm L x 3.2 cm D)
    • NOTE – The Xite-RB is not suitable for underwater use.



Part numbers

  • Xite-RB
    • includes light, removable diffuser, Style 2 filter glasses, battery charger, padded carry case

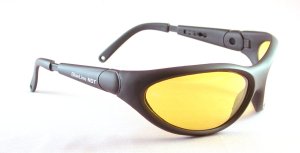

  • Additional filter glasses
    • Additional glasses can be purchased separately. They are available in three styles, as shown below.
    • All of the filter glasses conform to ANSI Z87.1 impact standards for safety glasses.
    • Styles 1 and 2 will fit over eyeglasses, Style 3 will not.
